What is RISC-V Microprocessor and Implementation using Verilog HDL Part-1

 Hello Dear Readers,

Today in this series of posts, I will provide some deep insight into the RISC-V microprocessor and its Implementation using Verilog HDL.

RISC-V is an open-source instruction set architecture (ISA) designed for modern computer processors. It is a relatively new ISA that has gained popularity recently due to its flexibility, simplicity, and open-source nature. The name "RISC-V" stands for Reduced Instruction Set Computing - Five, which refers to the fact that it is based on a simple, streamlined set of instructions.

One of the key features of RISC-V is its modular design, which allows for customization and scalability. This means that designers can choose which instructions to include and how to implement them, which can result in more efficient and specialized processors. Additionally, because RISC-V is open-source, it is free to use and can be modified by anyone, making it a popular choice for academic research and experimentation.

RISC-V also includes support for a wide range of operating systems, including Linux and various real-time operating systems (RTOS), and has been adopted by a growing number of hardware vendors and organizations. Its open-source nature and modular design make it a popular choice for a wide range of applications, from low-power embedded devices to high-performance computing systems.

Version of the RISC-V Microprocessor:

There are currently two major versions of the RISC-V ISA:

  • RISC-V 32-bit ISA: This version of the ISA uses 32-bit instruction and data formats and supports a 32-bit address space. It includes both integer and floating-point instructions, as well as optional extensions such as the multiply/divide extension (M) and the compressed instruction extension (C).
  • RISC-V 64-bit ISA: This version of the ISA uses 64-bit instruction and data formats and supports a 64-bit address space. It includes all of the features of the 32-bit ISA, as well as additional instructions for 64-bit operations.

In addition to these major versions, there are also various extensions to the RISC-V ISA that provide additional functionality, such as the vector extension (V) for SIMD (single instruction, multiple data) operations, the cryptography extension (C), and the hypervisor extension (H), among others. The availability and adoption of these extensions vary depending on the specific implementation of the RISC-V ISA.

Here in this tutorial series, we will be implementing RISC-V RV32I base instruction ISA.

The RISC-V 32-bit ISA has several optional extensions that can be added to the base instruction set, providing additional functionality. Some of the commonly used extensions are:

  • "M" Extension: This extension adds integer multiplication and division instructions.
  • "A" Extension: This extension adds atomic memory operations, including load-reserved and store-conditional instructions, which can be used for multi-threaded programming.
  • "F" Extension: This extension adds single-precision floating-point instructions.
  • "D" Extension: This extension adds double-precision floating-point instructions.
  • "C" Extension: This extension adds compressed instructions, which can reduce code size by encoding commonly used instructions in a smaller format.
  • "B" Extension: This extension adds bit manipulation instructions, which can be used for various operations such as bit counting, bit extraction, and bit-field manipulation.
  • "J" Extension: This extension adds support for dynamic linking and jump instructions with a larger address range.
  • "T" Extension: This extension adds transactional memory support for hardware-level transactional memory operations, which can improve multi-threaded programming efficiency.
  • "P" Extension: This extension adds packed-SIMD instructions for efficient parallel processing of large data sets.

Note that not all implementations of the RISC-V ISA support all of these extensions, and some may support additional extensions beyond these. The specific set of extensions supported depends on the implementation and intended use of the processor.

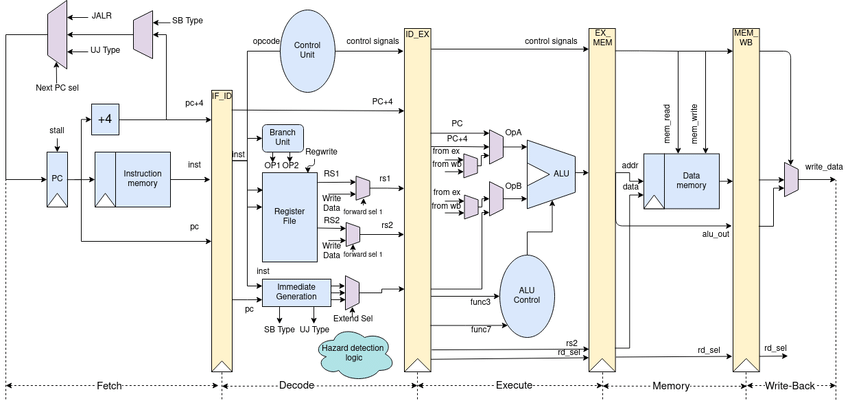

Block Diagram of RISC-V Processor:
