Introduction to Low Power in the VLSI Chip Design and Techniques for Switching and Leakage Power Reduction

 Hello Dear Readers,

Today in this series of posts I will provide some deep insight into low-power VLSI design flow and the different techniques to reduce different components of power consumption.

It’s no secret that power is emerging as the most critical issue in system-on-chip (SoC) design today. Power management is becoming an increasingly urgent problem for almost every category of design, as power density—measured in watts per square millimeter—rises at an alarming rate. From a chip-engineering perspective, effective energy management for an SoC must be built into the design starting at the architecture stage; and low-power techniques need to be employed at every stage of the design, from RTL to GDSII flow.

Fred Pollack of Intel first noted a rather alarming trend in his keynote at MICRO-32 in 1999. He made the now well-known observation that power density is increasing at an alarming rate, approaching that of the hottest man-made objects on the planet, and graphed power density as shown in Fig. 1.

Fig. 1: Power density with shrinking geometry

The power density trend versus power design requirements for modern SoCs as shown below image. The widening gap represents the most critical challenge that designers of wireless, consumer, portable, and other electronic products face today.

Meanwhile, the design efforts in managing power are rising due to the necessity to design for low power as well as for performance and costs. This has ramifications for engineering productivity, as it impacts schedules and risk. Power management is a must for all designs of 90nm and below. Aggressive management of leakage current can significantly impact design and implementation choices at smaller geometries. Indeed, for some designs and libraries, leakage current exceeds switching currents, thus becoming the primary source of power dissipation in CMOS, as shown in Fig. 2.

Fig. 2: Process technology vs. leakage and dynamic power

Until recently, designers were primarily concerned with improving the performance of their designs (throughput, latency, frequency), and reducing silicon area to lower manufacturing costs. Now power is replacing performance as the key competitive metric for SoC design. These power challenges affect almost all SoC designs. With the explosive growth of personal, wireless, and mobile communications, as well as home electronics, comes the demand for high-speed computation and complex functionality for competitive reasons. Today’s portable products are expected not only to be small, cool, and lightweight but also to provide extremely long battery life. And even wired communications systems must pay attention to heat, power density, and low-power requirements. Among the products requiring low-power management are the following:

•  Consumer, wireless, and handheld devices: cell phones, personal digital assistants (PDAs), MP3 players, global positioning system (GPS) receivers, and digital cameras
• Home electronics: game consoles for DVD/VCR players, digital media recorders, cable and satellite television set-top boxes, and network and telecom devices
• Tethered electronics such as servers, routers, and other products bound by packaging costs, cooling costs, and Energy Star requirements supporting the Green movement to combat global warming

For most designs being developed today, the emphasis on active low-power management—as well as on performance, area, and other concerns—is increasing.

Power Management:

Power Dissipation in CMOS Let’s take a quick look at the sources of power dissipation. Total power is a function of switching activity, capacitance, voltage, and the transistor structure itself.

Fig. 3: Power dissipation in CMOS

Total power is the sum of dynamic and leakage power. Dynamic power is the sum of two factors: switching power plus short-circuit power. Switching power is dissipated when charging or discharging internal and net capacitances. Short-circuit power is the power dissipated by an instantaneous short-circuit connection between the supply voltage and the ground at the time the gate switches state.

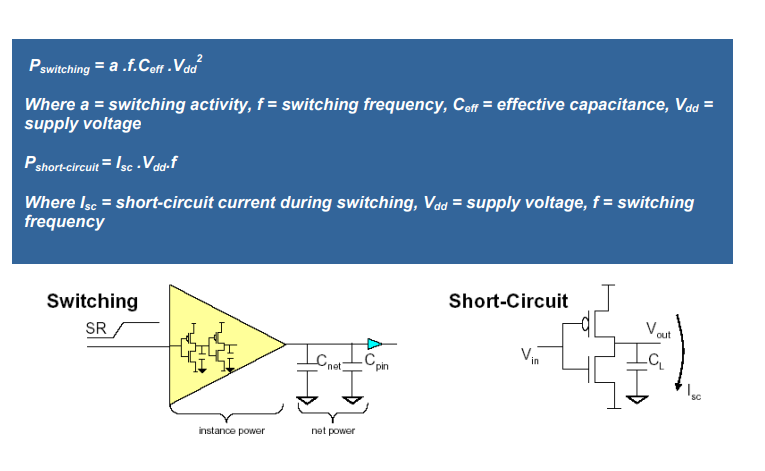

Fig. 4: Dynamic power in CMOS

Dynamic power can be lowered by reducing switching activity and clock frequency, which affects performance; and also by reducing capacitance and supply voltage. Dynamic power can also be reduced by cell selection—faster slew cells consume less dynamic power. Leakage power is a function of the supply voltage Vdd, the switching threshold voltage Vth, and the transistor size.

Fig. 5: Leakage power in CMOS

Of the following leakage components, sub-threshold leakage is dominant.

•  Diode reverse bias current
•  Sub-threshold current
• Gate-induced drain leakage

Gate oxide leakage While dynamic power is dissipated only when switching, leakage power due to leakage current is continuous, and must be dealt with using design techniques.

Techniques for Switching and Leakage Power Reduction:

The following table defines some common power management techniques for reducing power:

Clock tree optimization and clock gating:

In normal operation, the clock signal continues to toggle at every clock cycle, whether or not its registers are changing. Clock trees are a large source of dynamic power because they switch at the maximum rate and typically have larger capacitive loads. If data is loaded into registers only infrequently, a significant amount of power is wasted. By shutting off blocks that are not required to be active, clock gating ensures power is not dissipated during idle time. Clock gating can occur at the leaf level (at the register) or higher up in the clock tree. When clock gating is done at the block level, the entire clock tree for the block can be disabled. The resulting reduction in clock network switching becomes extremely valuable in reducing dynamic power.

Operand Isolation:

Often, datapath computation elements are sampled only periodically. This sampling is controlled by an enable signal. When the enable is inactive, the datapath inputs can be forced to a constant value. The result is that the datapath will not switch, saving dynamic power.

Multi-Vth:

Multi-Vth optimization utilizes gates with different thresholds to optimize for power, timing, and area constraints. Most library vendors provide libraries that have cells with different switching thresholds. A good synthesis tool for low-power applications is able to mix available multi-threshold library cells to meet speed and area constraints with the lowest power dissipation. This complex task optimizes for multiple variables and so is automated in today’s synthesis tools.

MSV:

Multi-supply voltage techniques operate different blocks at different voltages. Running at a lower voltage reduces power consumption, but at the expense of speed. Designers use different supply voltages for different parts of the chip based on their performance requirements. MSV implementation is key to reducing power since lowering the voltage has a squared effect on active power consumption. MSV techniques require level shifters on signals that go from one voltage level to another. Without level shifters, signals that cross voltage levels will not be sampled correctly.

DVS/DVFS/AVFS:

Dynamic voltage and frequency scaling (DVFS) techniques—along with associated techniques such as dynamic voltage scaling (DVS) and adaptive voltage and frequency scaling (AVFS)—are very effective in reducing power, since lowering the voltage has a squared effect on active power consumption. DVFS techniques provide ways to reduce power consumption of chips on the fly by scaling down the voltage (and frequency) based on the targeted performance requirements of the application. Since DVFS optimizes both the frequency and the voltage, it is one of the only techniques that is highly effective on both dynamic and static power. Dynamic voltage scaling is a subset of DVFS that dynamically scales down the voltage (only) based on the performance requirements. Adaptive voltage and frequency scaling is an extension of DVFS. In DVFS, the voltage levels of the targeted power domains are scaled in fixed discrete voltage steps. Frequency-based voltage tables typically determine the voltage levels. It is an open-loop system with large margins built in, and therefore the power reduction is not optimal. On the other hand, AVFS deploys closed-loop voltage scaling and is compensated for variations in temperature, process, and IR drop using dedicated circuitry (typically analog in nature) that constantly monitors performance and provides active feedback. Although the control is more complex, the payoff in terms of power reduction is higher.

Power Shutoff (PSO):

One of the most effective techniques, PSO—also called power gating—switches off power to parts of the chip when these blocks are not in use. This technique is increasingly being used in the industry and can eliminate up to 96 percent of the leakage current. Power gating is employed to shut off power in standby mode. A specific powerdown sequence is needed, which includes isolation on signals from the shut-down domain. Erroneous power-up/down sequences are the root cause of errors that can cause a chip re-spin. This needs to be correctly and exhaustively verified along with functional RTL to ensure that the chip functions correctly with sections turned off and that the system can recover after powering up these units. Deploying power shutoff also requires isolation logic and possibly state retention of key state elements or, in other words, state retentive power gating (SRPG). For multi-supply voltage (MSV), level shifters are also needed. Isolation logic is typically used at the output of a powered-down block to prevent floating, unpowered signals (represented by unknown or X in simulation) from propagating from powered-down blocks. The outputs of blocks being powered down need to be isolated before power can be switched off; and they need to remain isolated until after the block has been fully powered up. Isolation cells are placed between two power domains and are typically connected from domains powered off to domains that are still powered up. In some cases, isolation cells may need to be placed at the block inputs to prevent connection to powered-down logic. If the driving domain can be OFF when the receiving domain is ON, the receiving domain needs to be protected by isolation. The isolation cells may be located in the driving domain, with special isolation cells, or they may be in the receiving domain. State Retention In certain cases, the state of key control flops needs to be retained during power-off. To speed power-up recovery, state retention power gating (SRPG) flops can be used. These retain their state while the power is off, provided that specific control signaling requirements are met. Cell libraries today include such special state retention cells. A key area of verification is checking that these library-specific requirements have been satisfied and the flop will actually retain its state.

Fig. 6: State retention power gating

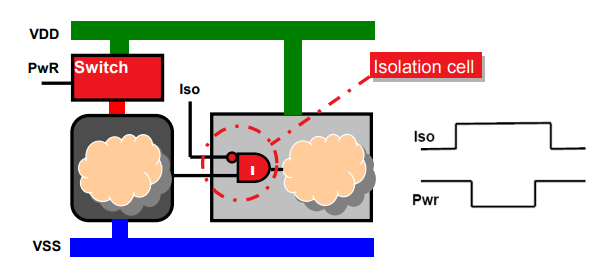

Fig. 7: Isolation gate and power-down switch

Power Cycle Sequence For power-down, a specific sequence is generally followed: isolation, state retention, and power shutoff. For the power-up cycle, the opposite sequence needs to be followed. The power-up cycle can also require a specific reset sequence.

Fig. 8: Power-up/down sequence

Given that there are multiple—possibly nested—power domains, coupled with different power sequences, some of which may share common power control signals and multiple levels of gated clocks, the need for verification support is tremendous. The complexity and possible corner cases need to be thoroughly analyzed; functional and power intent must be analyzed and thoroughly verified together using advanced verification techniques.

Memory Splitting:

In many systems, the memory capacity is designed for peak usage. During normal system activity, only a portion of that memory is actually used at any given time. In many cases, it is possible to divide the memory into two or more sections, and selectively power down unused sections of the memory. With increasing SoC memory capacity, reducing the power consumed by memories is increasingly important.

Substrate bias (Reverse body bias):

Since leakage currents are a function of device Vth, substrate biasing—also known as back biasing—can reduce leakage power. With this advanced technique, the substrate or the appropriate well is biased to raise the transistor thresholds, thereby reducing leakage. In PMOS, the body of transistor is biased to a voltage higher than Vdd. In NMOS, the body of transistor is biased to a voltage lower than Vss.

Since raising Vth also affects performance, an advanced technique allows the bias to be applied dynamically, so during an active mode of operation the reverse bias is small, while in standby the reverse bias is stronger. Area and routing penalties are incurred. An extra pin in the standard cell library is required and special library cells are necessary. Body-bias cells are placed throughout the design to provide voltages for transistor bulk. To generate the bias voltage, a substrate-bias generator is required, which also consumes some dynamic power, partially offsetting the reduced leakage. Substrate bias returns are diminishing at smaller processes in advanced technologies. At 65nm and below, the body-bias effect decreases, reducing the leakage control benefits. TSMC has published information pointing to a factor of 4x reduction at 90nm, and only 2x moving to 65nm Consequently, substrate biasing is predicted to be overshadowed by power gating. In summary, there are a variety of power optimization techniques that attack dynamic power, leakage, or both. Fig. 9 shows the effect of introducing several power reduction techniques on a raw RTL design, on both active and static power.

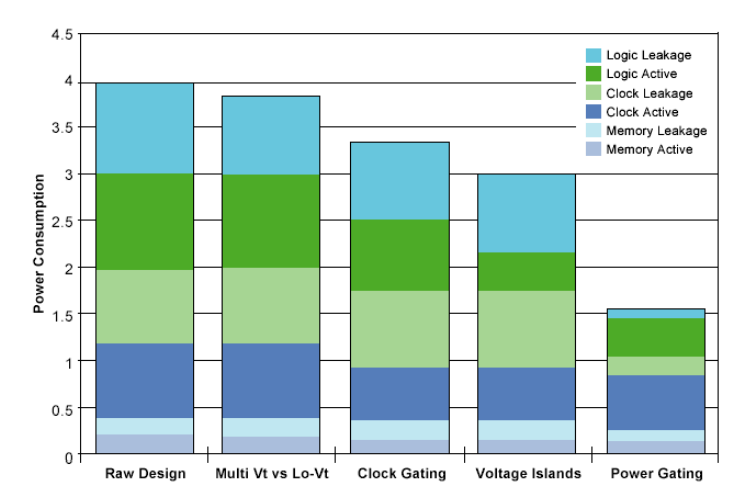

Fig. 9: Power reduction techniques
