ARM Assembly Language Practice Question And Answer Part-3

 Hello Dear Readers,

Today in this post I will provide some basics to advanced ARM's assembly language practice QA part-3, I have used the Keil tool for code writing.

Q-1). Create a stack that starts from address 0x5000 and contains 5 values, and the stack pointer always points to the uppermost value.

Code:

; program to create stack and store 5 values

area stack, code, readonly

entry

ldr r13,=0x5000

ldr r1,=10

ldr r2,=11

ldr r3,=12

ldr r4,=13

ldr r5,=14

STMDB SP!,{r1-r5}

add r4,r3,r5

end

Output:

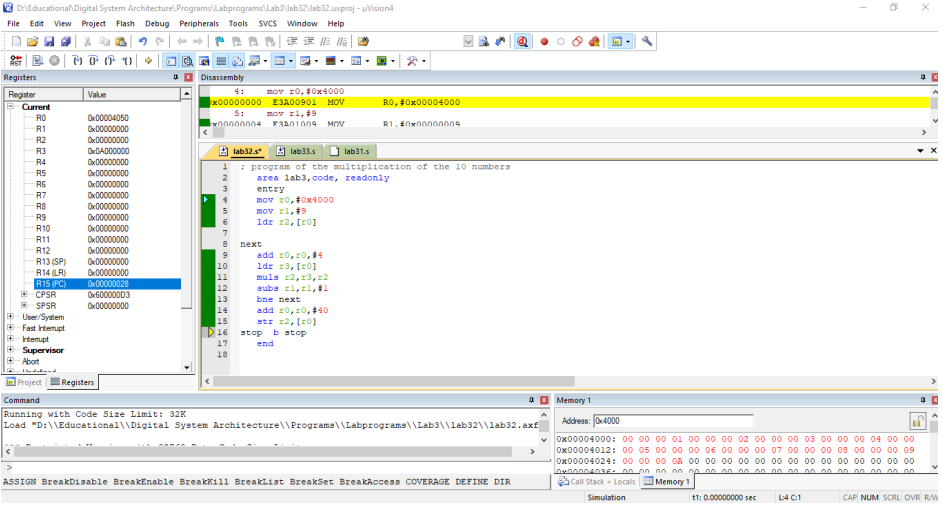

Q-2). Write a code to find the multiplication of 10 numbers stored consecutively starting from 0x4000.

Code:

; program of the multiplication of the 10 numbers

area mul, code, readonly

entry

mov r0,#0x4000

mov r1,#9

ldr r2,[r0]

next

  add r0,r0,#4

  ldr r3,[r0]

  muls r2,r3,r2

  subs r1,r1,#1

   bne next

   add r0,r0,#44

   str r2,[r0]

stop b stop

end

Output:


Q-3). Write an assembly language program to perform dot product of two vectors using a subroutine. Pass arguments to the subroutine using pass-by-stack technique.

Code:

; program of product two vector

sram_base equ 0x00004000

area paasbystack, code, readonly

entry

ldr sp,=sram_base

mov r0,#2 ; vector 1 scaler in x direction

mov r1,#4 ; scaler in y direction

mov r2,#2

mov r3,#2

STMIA sp!,{r0-r3}

BL loop

LDMDB sp!,{r0-r3}

stop b stop

loop

  STMIA sp!,{r4-r6,lr}

  ldr r5,[sp, #-0x20]

  ldr r6,[sp, #-0x1c]

 mul r4,r5,r6

 ldr r5,[sp, #-0x18]

 ldr r6,[sp, #-0x14]

 mla r4,r5,r6,r4

 str r4,[sp, #-0x20]

 LDMDB sp!,{r4-r6,pc}

 End

Output:


Q-4). Write an assembly language program to reverse a string without using any other memory location.

Code:

; program of the reverse string

area string, code,readonly

CR EQU 0x0D

entry

ldr r0,=data

ldr r2,=0x40000000

ldr r3,=0x40000020

mov r4,#00

up

 ldrb r5,[r0],#1

 cmp r5,#CR

 strb r5,[r2],#1

 add r4,r4,#1

 BNE up

 sub r4,r4,#1

 sub r2,r2,#2

  BNE down

down

  ldrb r6,[r2]

 strb r6,[r3],#1

 sub r2,r2,#1

 subs r4,r4,#1

 BNE down

stop b stop

data dcb "DAIICT",CR

end

Output:

Q-5). Count the number of alphabets in a string.

Code:

area count,code,readonly

ENTRY

 LDR R0, =0 ; length = 0

 LDR R1, =data ;

loop

  LDRB R2, [R1] ; load next byte of string

  CMP R2, #0

 BEQ again ; finished if 0

 ADD R0, R0, #1 ; length += 1

 ADD R1, R1, #1 ; R1 -> next byte in s

 B loop ; next byte

again

  stop B stop

data DCB "daiict"

end

Output:

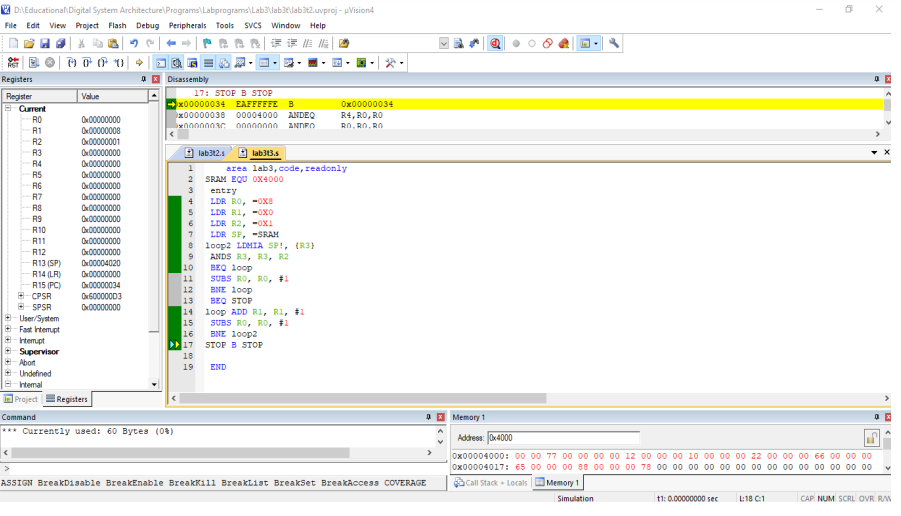

Q-6). Write a code to find the count of even numbers from 8 numbers stored consecutively starting from 0x4000.

Code:

area even,code,readonly

SRAM EQU 0X4000

entry

 LDR R0, =0X8

 LDR R1, =0X0

 LDR R2, =0X1

 LDR SP, =SRAM

loop2

  LDMIA SP!, {R3}

  ANDS R3, R3, R2

  BEQ loop

  SUBS R0, R0, #1

  BNE loop

  BEQ STOP

loop

   ADD R1, R1, #1

   SUBS R0, R0, #1

   BNE loop2

STOP B STOP

END

Output:


Q-7). Write an assembly language program to solve the expression x^2+y^2 using a subroutine. Pass arguments to the subroutine using both pass-by-register and pass-by-reference techniques.

Code:

AREA equ,CODE,READONLY

SRAM EQU 0X4000

ENTRY

LDR SP, =SRAM

LDR R0, =0X5

BL loop

MOV R4, R2

LDR R0, =0X6

BL loop

MOV R5, R2

ADDS R7, R4, R5

STOP B STOP

loop

   STMIA SP!, {LR}

   MOV R1, R0

   MULS R2, R1, R0

   LDMDB SP!, {PC}

END

Output:

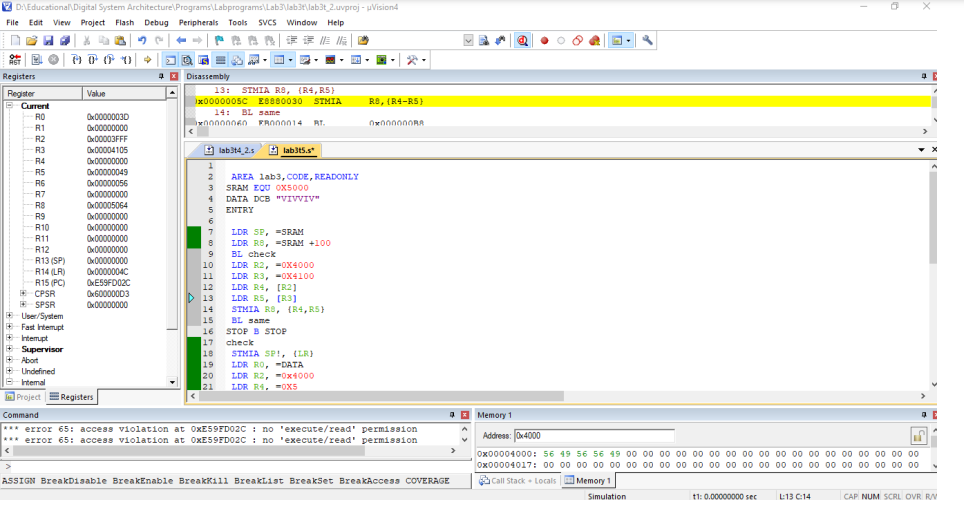

Q-8). Write an assembly language program to check whether a string is a palindrome or not using a subroutine. Pass arguments to the subroutine using the pass-by-reference technique.

Code:

AREA plan, CODE, READONLY

ENTRY

LDR SP, =SRAM

LDR R8, =SRAM +100

BL check

LDR R2, =0X4000

LDR R3, =0X4100

LDR R4, [R2]

LDR R5, [R3]

STMIA R8, {R4,R5}

BL same

STOP B STOP

check

  STMIA SP!, {LR}

  LDR R0, =DATA

  LDR R2, =0x4000

  LDR R4, =0X5

l2

  LDRB R5, [R0]

  STRB R5, [R2]

  ADD R0, R0, #1

  ADD R2, R2, #1

  SUBS R4, R4, #1

  BNE l2

 SUB R2, R2, #1

  LDR R4, =0X5

  LDR R3, =0x4100

loop

   LDRB R6, [R2]

   STRB R6, [R3]

   SUB R2, R2, #1

    ADD R3, R3, #1

    SUBS R4, R4, #1

    BNE loop

    LDMDB SP!, {PC}

same

     STMIA SP!, {LR}

     LDMIA R8, {R9-R10}

     CMP R9, R10

     LDREQ R11, =0X11111111

     LDMDB SP!, {PC}

SRAM EQU 0X5000

DATA DCB "VIVVIV"

END

Output:


Q-9). Write an assembly language program to find the GCD of two numbers using a subroutine. Pass arguments to the subroutine using pass-by-stack technique.

Code:

AREA program, CODE, READONLY

SRAM EQU 0X4000

ENTRY

LDR SP, =SRAM

LDR R1, =0X9

LDR R2, =0X5

STMIA SP!, {R1-R2}

AGAIN

  BL GCD

  BNE AGAIN

STOP B STOP

GCD

  STMIA SP!, {LR}

   LDR R8, [SP, #-8]

   LDR R9, [SP, #-12]

   CMP R9, R8

   SUBSGT R9, R9, R8

   SUBSLT R8, R8, R9

   STR R8, [SP, #-8]

   STR R9, [SP, #-12]

END

Output:
